You may be preparing to purchase a large LED display for your major event, but you’re unsure about the differences between P5 vs P10 LED display—or perhaps even have some misconceptions about certain concepts. Let’s explore the distinctions between the two.

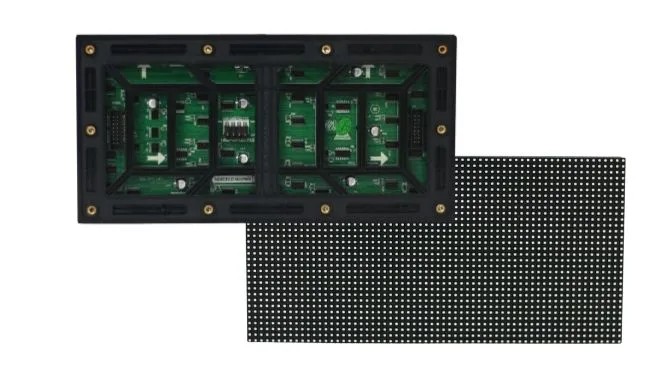

What is a P5 LED Display?
First, let’s clarify: pixel pitch refers to the distance between the centers of adjacent LED diodes. A P5 LED display features a 5-millimeter pixel pitch.
This smaller distance results in higher pixel density, delivering greater resolution for the same screen size. It’s suitable for large indoor installations and outdoor use.

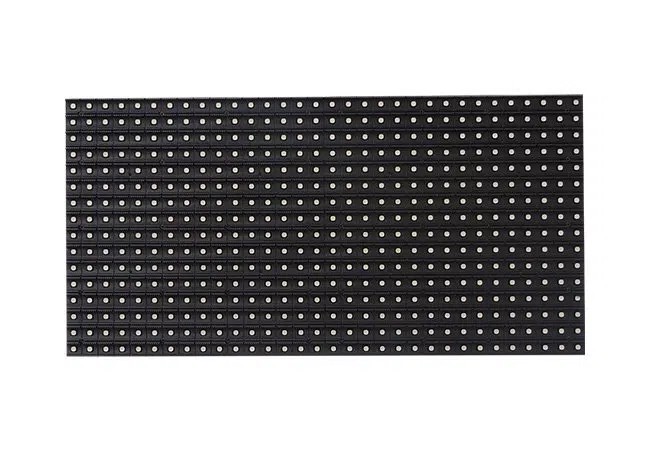

What is a P10 LED Display?
A P10 LED display features a pixel pitch of 10 millimeters. Its larger pixel spacing results in lower pixel density, making it unsuitable for close viewing and primarily deployed outdoors.
P10 excels at delivering eye-catching, attention-grabbing visuals that remain clearly visible from considerable distances.

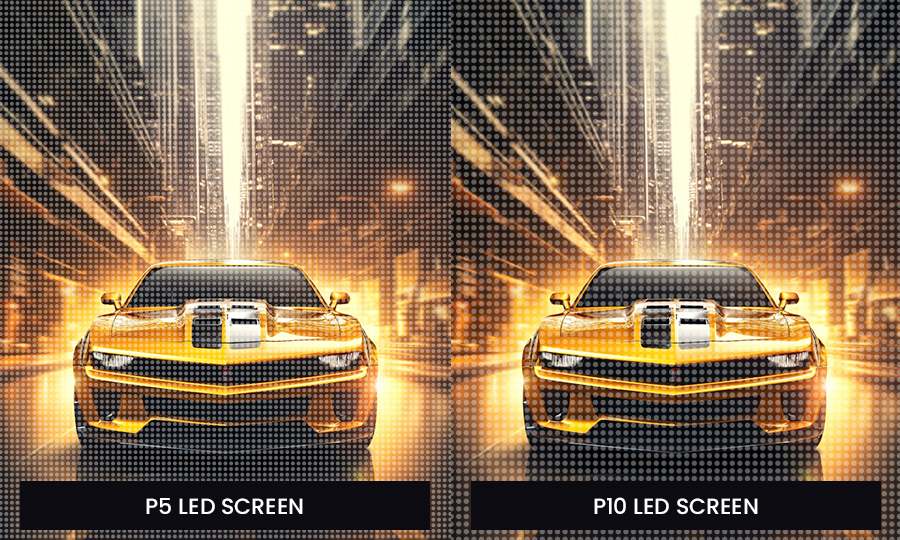

Differences Between P5 vs P10 LED Display
The distinctions between P5 vs P10 LED display determine their varying visual effects. By strategically deploying each based on these differences, you can achieve optimal visual performance in different settings. Let’s examine their respective advantages.
Clarity and Detail
The pixel pitch and resolution differ between P5 vs P10 LED display. Overall, P5 displays offer higher resolution and superior clarity, with more comprehensive detail rendering. P10 displays cannot match this level of clarity and fine detail at close range.
Brightness
Brightness also differs between P5 vs P10 LED display. P5 displays typically range from 4500 to 5500 nits. Due to their larger LED chips, P10 displays achieve higher brightness levels, typically between 5500 and 7000 nits.
In comparison, P10 displays deliver superior performance in outdoor environments.
Viewing Distance
The optimal viewing distance for P5 LED displays is approximately 5 to 6.5 meters, while P10 LED displays are best viewed from 10 to 11.5 meters. If your LED display is larger or intended for viewing from greater distances, P10 may be more suitable than P5.
Therefore, you can choose between P5 vs P10 LED display based on your specific viewing distance requirements.
Power Consumption
P5 vs P10 LED display differ in power consumption. Theoretically, P5 displays offer higher pixel density and greater clarity, resulting in slightly higher power consumption.
While P10 displays have lower pixel density, they provide higher brightness levels, which also contribute to power usage. Overall, P5 LED displays exhibit marginally higher power consumption.
Suitable Locations

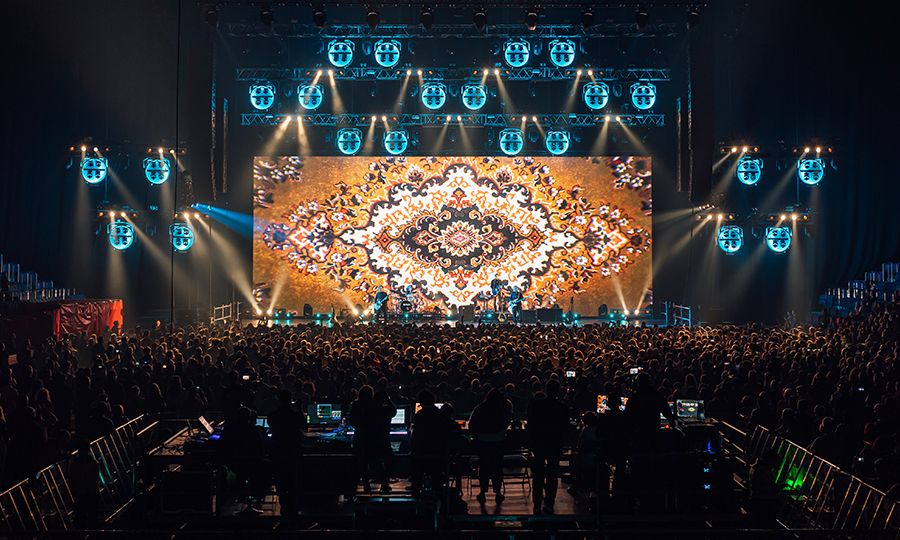

Differences exist in the suitable locations for P5 vs P10 LED display. P5 LED displays are more suitable for large indoor venues such as concerts, sports events, Olympic venues, and CCTV stages.
P10 LED displays are more suitable for very large and open spaces such as highways and outdoor billboards.
Price Considerations
Regarding pricing, P5 vs P10 LED display of the same size differ in cost. Due to their varying pixel densities, P5 displays incorporate more LED chips, resulting in higher production costs and consequently a slightly higher price point compared to P10 displays.
How to Choose Between P5 vs P10 LED Display?
After reviewing the above information, you should now have a clearer understanding of how to choose between P5 vs P10 LED display. The decision primarily depends on your specific application environment.
Selecting the appropriate LED display is the most critical factor, and you can make your choice based on your budget.
